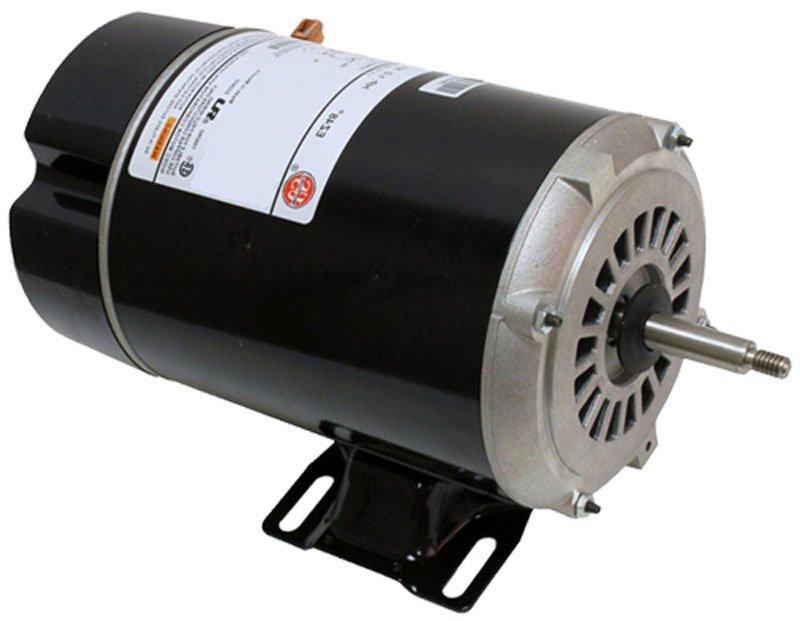

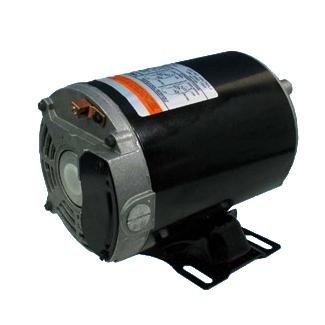

U.S. Motors - Emerson 48Y Thru-Bolt Dual Speed 3/0.38HP Full Rated Pool and Spa Motor
$429.99
The Emerson 48 Frame Thru-Bolt Pool and Spa Motor is programmed to operate at two different speeds with outstanding quality and efficiency.
More Details
Membership Available
The Emerson 48 Frame Thru-Bolt Pool and Spa Motor is programmed to operate at two different speeds with outstanding quality and efficiency.
- Class F Insulated
- 50 Degree C Ambient
- 3 O'clock Conduit
- 3/8-16 UNC 2A RH Shaft Thread
- 3 1/2
- Service Factor: 1
- RPM: 3450/1725
- Amps: 12.7/3.4
- Length without Shaft: 10.6
- Voltage: 230V
- Allied SKU: 1-20-0012
With 3 and .38HP, the Emerson 48 Frame Thru-Bolt Pool and Spa Motor is programmed to operate at two different speeds with outstanding quality and efficiency. Engineered with open drip proof technology, the Emerson 48 Motor is designed with ventilation openings, preventing water from damaging the motor while keeping it long lasting and reliable. Its soft starter model ensures the voltage torque is gently delivered throughout the motor, gaining power gradually to ensure maximum performance. Thermally protected, it can withstand harsh conditions and can install easily with its thru bolt mounting. For the best in replacement motors, Emerson offers the 48 Frame with 230V for reliable quality.
Featuring basic Single Phase wiring, the Emerson 48 Y-Frame Thru-Bolt motor delivers efficient operation. Little maintenance is required and the Emerson 48 Y-Frame Thru-Bolt is built to last
Advanced in its design, the Emerson 48 Y-Frame Thru-Bolt motor comes with a Y-Frame, indicating a special non-standard mounting configuration
The Emerson 48 Y-Frame Thru-Bolt motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model
| Service Factor: | 1.00 - 1.25 |
| Horsepower: | 3.0/0.38 HP |
| Speed Settings: | Dual Speed |
| Voltage: | 230V |
| Horsepower: | 3 HP |
| Flange Type: | Thru Bolt Mount |
| Pool Type: | Spa/Hot Tub |
| Pool Type: | Above Ground |
| Rating Type: | Full-Rated |
| Product Type: | Spa Part |
| Motor Frame: | 48 Frame |
| Energy Efficiency: | Standard |
| Manufacturer: | U.S. Motors Emerson |
| Product Type: | Pool Part |
See Owner's Manual for details
