Pentair - EC-180009 FNS Plus 60 sq. ft. DE Pool Filter - Limited Warranty
$1,379.00

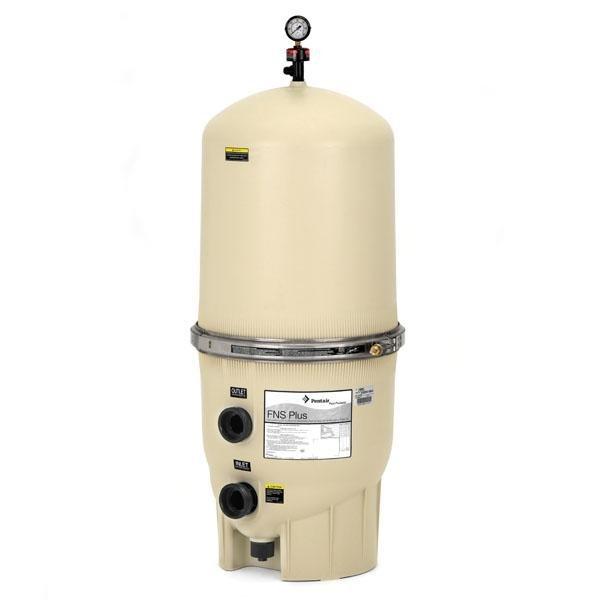

The Pentair FNS Plus 60 sq. ft. D.E. Pool Filter is designed with a fiberglass-reinforced polypropylene tank that enhances durability.
More Details
Membership Available
The Pentair FNS Plus 60 sq. ft. D.E. Pool Filter is designed with a fiberglass-reinforced polypropylene tank that enhances durability.
- Fiberglass-reinforced polypropylene tank
- Compatible with valves: 261047 (2" PVC Slide w/o plumbing), 261049 (2" HiFlow w/o plumbing), 261142 (2" HiFlow w/plumbing), 261152 (2" MPV threaded), 263064 (Push Pull 7.5"), 261177 (1-1/2" MPV threaded), 263051 (Push Pull 7.5")
- Almond color

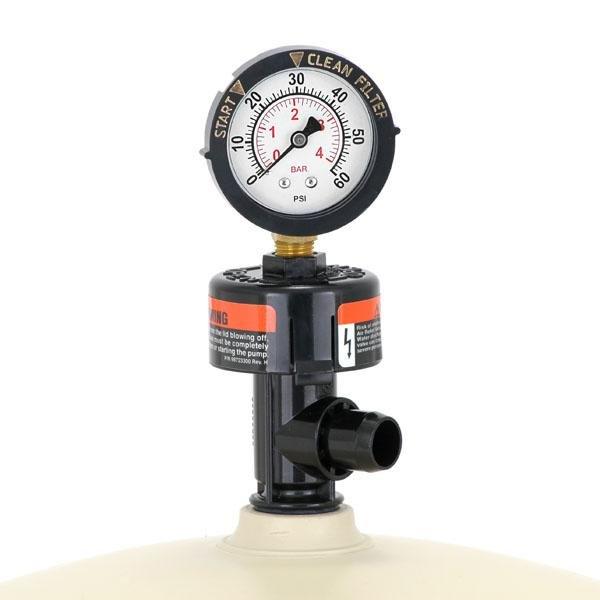

- Hi-flow manual air relief valve

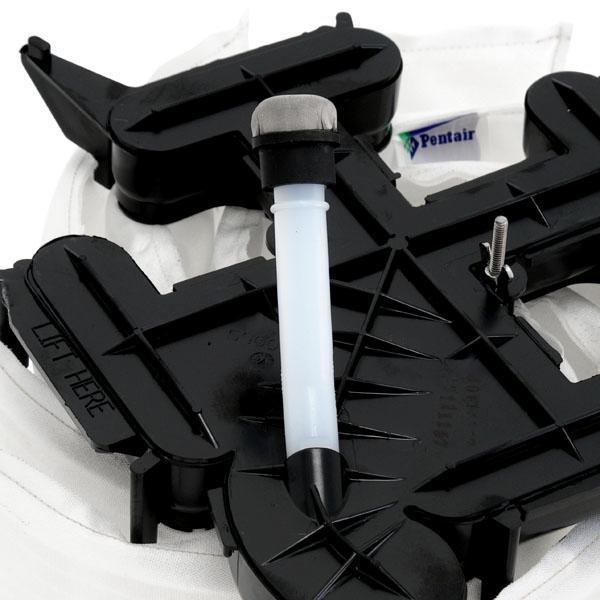

- Removable filter grid pack
- 1-1/2" drain for winterization

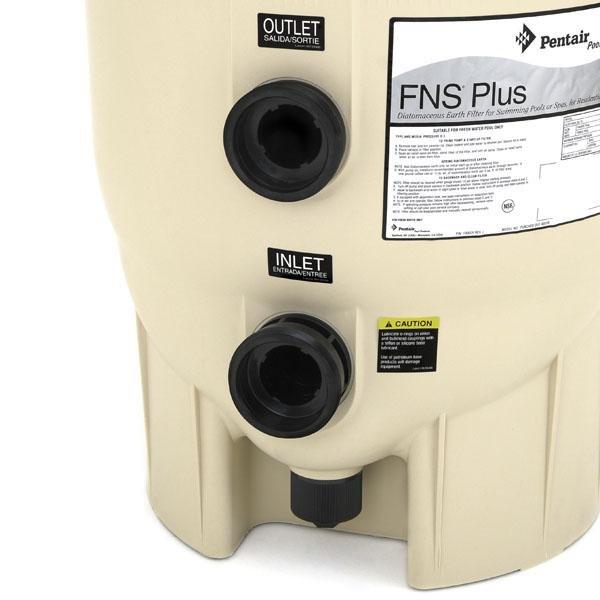

- 2" plumbing for installation
- 68" vertical clearance
- Certified to NSF/ANSI 50
The Pentair FNS Plus Fiberglass D.E. Pool Filter provides the highest level of filtration. The FNS Plus is capable of filtering out particulate as small as 5 microns. That's the same size as a human red blood cell.

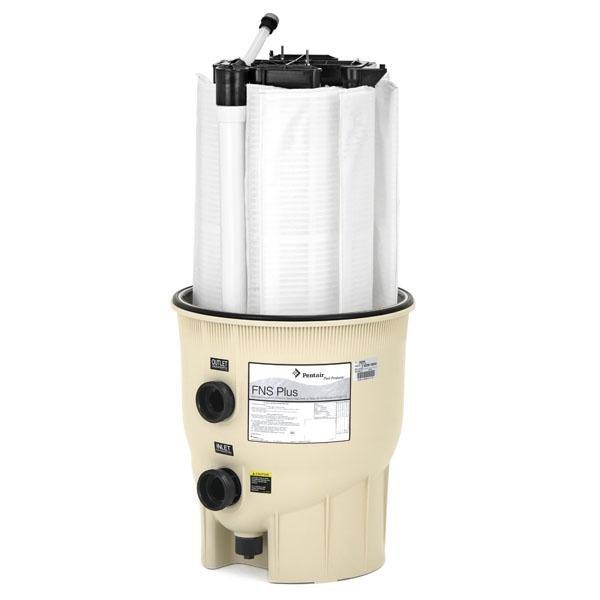

The FNS plus uses a set or grids coated in pool grade diatomaceous earth. The set of grids consists of 7 full grids 30" in length and 1 partial grid 30" in length. The FNS Plus tank is made with fiberglass-reinforced polypropylene that enhances durability and product life. It uses a hi-flow manual air relief valve that eliminates air buildup in the tank rather than having it force back thru the system.

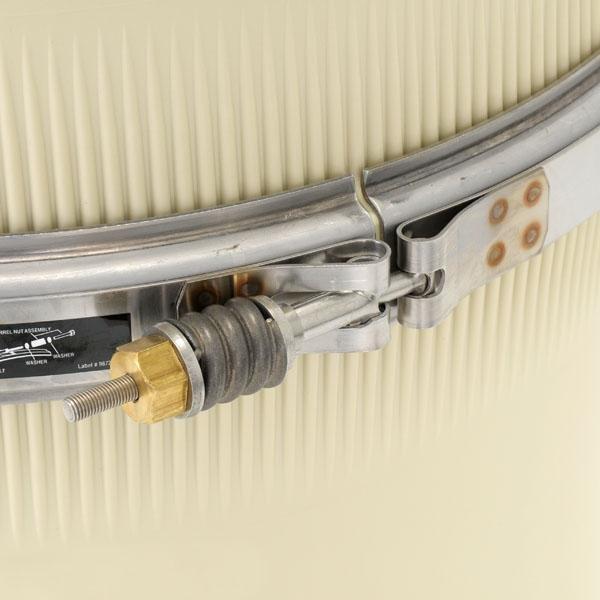

A 1-1/2" drain is used for quick drainage, and a steel tension control clamp rests securely around the tank, a brass barrel nut securely fastens each half tightly together. To remove the FNS Plus requires a minimum of 86" vertical clearance. Before removing the dome lid, it is suggested to backwash the filter to discharge the contaminated DE powder.
The FNS plus uses a set or grids coated in pool grade diatomaceous earth. The set of grids consists of 7 full grids 30" in length and 1 partial grid 30" in length. The FNS Plus tank is made with fiberglass-reinforced polypropylene that enhances durability and product life. It uses a hi-flow manual air relief valve that eliminates air buildup in the tank rather than having it force back thru the system.
A 1-1/2" drain is used for quick drainage, and a steel tension control clamp rests securely around the tank, a brass barrel nut securely fastens each half tightly together. To remove the FNS Plus requires a minimum of 86" vertical clearance. Before removing the dome lid, it is suggested to backwash the filter to discharge the contaminated DE powder.
Common Questions:
What are the dimensions of the tank?- Tank Dimensions: (DxH) 21.5" x 55"
- Weight: 84 lbs.
- The FNS Plus uses 6 lbs of DE.
- The max GPM flow rate is 150 GPM.
- The FNS Plus comes with the tank, steel clamp, air relief valve, and threaded bulk heads.
- No. The FNS Plus does not come with a backwash valve. For a multi-port valve option, we suggest item number 261152 for 2" plumbing and 261177 for 1.5" installations. For a side-mount push-pull valve, we suggest item number 263064.
- One year parts only warranty from the date of purchase. Please see the Pentair Warranty Card for more details.
California Residents WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Looking for Pentair FNS Plus Replacement Parts?
If you need a replacement part for your Pentair FNS Plus Pool Filter, click the following button to view the part list schematic and all available parts.
Click here for Pentair FNS Plus 60 sq ft. Pool Filter Replacement Parts
D.E. Filter systems cut energy costs by using lower pump pressure and speeds. If properly taken care of and rinsed regularly, they can significantly reduce water use. In addition to cost savings, lower pump pressure can help prolong the life of your pool pump!
A D.E. Filter maximizes the useful filtration area. A larger filtration area means longer periods between each cleaning, saving you time on pool maintenance and giving you more time to relax and enjoy your pool.
D.E. is a natural substance that captures dust, dirt and debris as small as 5 microns. A D.E. filter system removes body oils, suntan lotions, pollen, dust, and even some bacteria, making your swimming pool a healthier environment.
| Installation Type: | Residential |
| Filtration Area: | 60 sq ft |
| Filter Diameter: | 21-1/2 in |
| Product Type: | Pool Filter |
| Filter Type: | Diatomaceous Earth |
| Manufacturer: | Pentair |
| Warranty: | 1-Year |
One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
