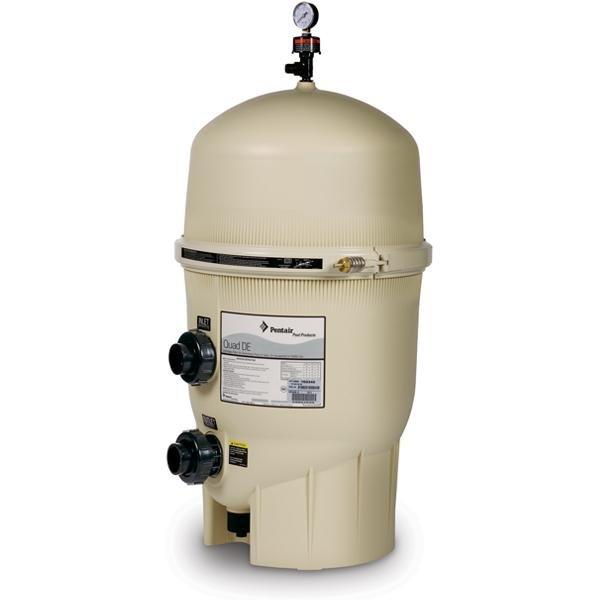

Pentair - EC-188593 Quad DE 80 sq. ft. Cartridge Style DE Pool Filter - Limited Warranty
$1,669.00
The Quad DE In Ground Pool D.E. Filter contains 4 cartridge-style DE filter elements instead of the standard curved DE grids.
More Details
Membership Available
The Quad DE In Ground Pool D.E. Filter contains 4 cartridge-style DE filter elements instead of the standard curved DE grids.
- Valve sold seperately
- Compatible with valves: 261173 (1.5' MPV), 263079 (2" PVC Slide Valve), 261049 (2" HiFlow Valve no plumbing), 261050 (2" HiFlow w/plumbing), 261055 (2" MPV), 263064 (Push Pull Valve, 7.5" Center)
- Four large-capacity cartridges provide maximum filter surface area for greater dirt-trapping capacity and longer periods between cleanings
- Unique internal flow path ensures optimum filtration and backwashing efficiency
- Chemical resistant, fiberglass reinforced polypropylene tank for exceptional strength and long life
- Easily removable cartridge elements make maintenance fast and easy
- Water flows through the Quad D.E. Filters so efficiently that your pump will use less energy
- Manual air relief valve and continuous internal air relief work together to maintain efficient filtration
- Attractive almond-colored tank blends into any backyard environment
- Durable 8 oz. polyester cartridge media has super-slick surfaces, making them easier to clean than conventional cartridge filters
- Certified to NSF/ANSI 50
The Pentair Quad DE 80 sq ft In-Ground Pool Filter provides the highest level of filtration out of all the filtration types available. The Quad DE 80 sq ft is capable of filtering out particulate as small as 5 microns. That's the same size as a human red blood cell. The Quad DE 80 uses a set of 4 cartridges coated in pool grade diatomaceous earth to provide filtration. The cartridge dimensions are 27" x 7" x 7" with a 3" center hole. The Quad DE tank is made with fiberglass-reinforced polypropylene that enhances durability and product life. It uses a hi-flow manual air relief valve that eliminates air buildup in the tank rather than having it force back through the system.
A 1-1/2" drain is used for quick drainage, and a steel tension control clamp rests securely around the tank, a brass barrel nut securely fastens each half tightly together. To remove the Quad DE lid it requires a minimum of 68" vertical clearance. Before removing the dome lid, it is suggested to backwash the filter to discharge the contaminated DE powder.
A 1-1/2" drain is used for quick drainage, and a steel tension control clamp rests securely around the tank, a brass barrel nut securely fastens each half tightly together. To remove the Quad DE lid it requires a minimum of 68" vertical clearance. Before removing the dome lid, it is suggested to backwash the filter to discharge the contaminated DE powder.
Common Questions:
What are the dimensions of the tank?- Tank Dimensions: (DxH) 21.5" x 47"
- Weight: 72 lbs
- The 1888593 Quad DE 80 sq ft uses 8 lbs of DE.
- The max GPM flow rate is 160 GPM.
- The Quad DE 80 sq ft comes with the tank, steel clamp, air relief valve, and threaded bulkheads.
California Residents WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
D.E. is a natural substance that captures dust, dirt and debris as small as 5 microns. A D.E. filter system removes body oils, suntan lotions, pollens, dust, and even some bacteria, making your swimming pool a healthier environment.
D.E. Filter systems cut energy costs by using lower pump pressure and speeds. If properly taken care of and rinsed regularly, they can significantly reduce water use. In addition to cost savings, lower pump pressure can help prolong the life of your pool pump!
A D.E. Filter maximizes the useful filtration area. A larger filtration area means longer periods between each cleaning, saving you time on pool maintenance and giving you more time to relax and enjoy your pool.
| Pool Type: | In Ground |
| Installation Type: | Residential |
| Filtration Area: | 80 sq ft |
| Product Type: | Pool Filter |
| Filter Type: | Diatomaceous Earth |
| Eco-Friendly: | Yes |
| Manufacturer: | Pentair |
| Warranty: | 1-Year |
One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
