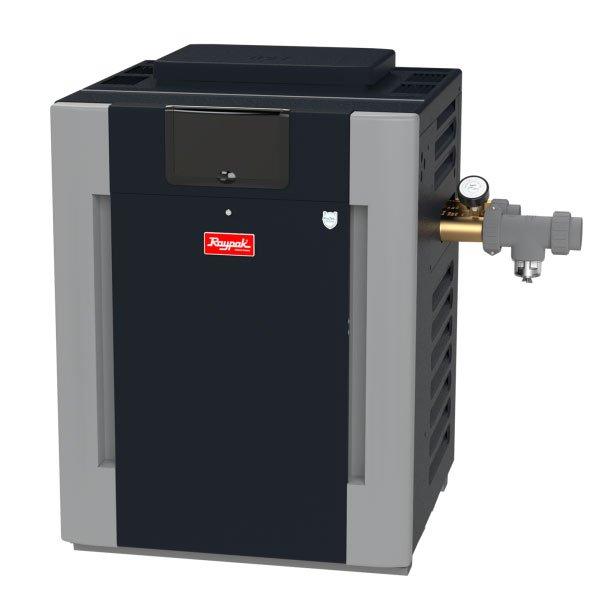

Raypak - Digital Brass ASME Copper Natural Gas 266K BTU Pool Heater
$3,531.00
Raypak Digital ASME Copper 266,000 BTU Natural Gas Pool and Spa Heater with Brass Headers, 0-2,000' Elevation, B-R266A-EN-C #50 ASME.
More Details
Membership Available
Raypak Digital ASME Copper 266,000 BTU Natural Gas Pool and Spa Heater with Brass Headers, 0-2,000' Elevation, B-R266A-EN-C #50 ASME.
- Part Number: 017372
- Model Number: B-R266A-EN-C
- Digital LCD for temperature control and heater settings
- Microprocessor controls diagnostic readout and continuously monitors operational status
- Unitherm governor eliminates condensation
- Small footprint
- High-wind reliability
- 125# pressure relief valve
- ANSI Z21.56 design certified
- Copper heat exchanger
- Brass headers
- Model Number: B-R266A-EN-C #50 ASME
- 0-2,000' Elevation
- Important: Instructions for Accepting Your Freight Shipment
The Raypak Digital ASME Copper Natural Gas with Brass Header Pool Heater is engineered to last. Looking at the heater, you can see that it's designed different than most heaters on the market. The Raypak 009269 has a unique "pagoda design" to enable the heater to stay effective during high wind speeds and downdrafts. The cabinet of the heater is constructed from a stainless steel, then powder coated with a 7 stage process to outlast the elements and corrosion. Inside the unit, the heater boasts brass headers and a copper fin tube heat exchanger.
The Raypak Digital ASME Natural Gas Heater not only lasts long, but is extremely easy to use and operate. The heater has a built-in Microprocessor Controlled Thermostat to set you pool or spa at the perfect temperature with the push of a button. It's also remote compatible and can connect to any two or three wire remote for added convenience. The heater also contains built-in diagnostic controls to alert users or pool professionals of any issues and the location of these issues. In addition, the heater contains built-in electronic ignition. This enables the unit to turn the pilot light off and on when needed, conserving gas usage and saving users money.
The Raypak Digital ASME Natural Gas Heater not only lasts long, but is extremely easy to use and operate. The heater has a built-in Microprocessor Controlled Thermostat to set you pool or spa at the perfect temperature with the push of a button. It's also remote compatible and can connect to any two or three wire remote for added convenience. The heater also contains built-in diagnostic controls to alert users or pool professionals of any issues and the location of these issues. In addition, the heater contains built-in electronic ignition. This enables the unit to turn the pilot light off and on when needed, conserving gas usage and saving users money.
| Product Type: | Pool Heater |
| Manufactuer: | Raypak |
| Pool Type: | In Ground |
| Fuel Type: | Natural Gas |
| Emission: | Standard |
| Ignition: | Electronic |
| Heat Exchanger: | Copper |
| Installation Type: | Commercial (ASME) |
| Controls: | Digital |
| Heat Output: | 266,000 BTU |
| Elevation: | 0 - 2,000 ft |
| Warranty: | 1-Year |
| Model Number: | B-R266A-EN-C |
One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
