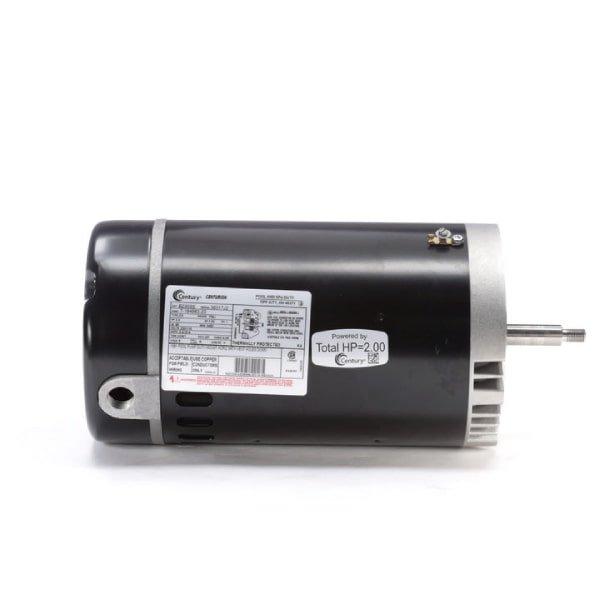

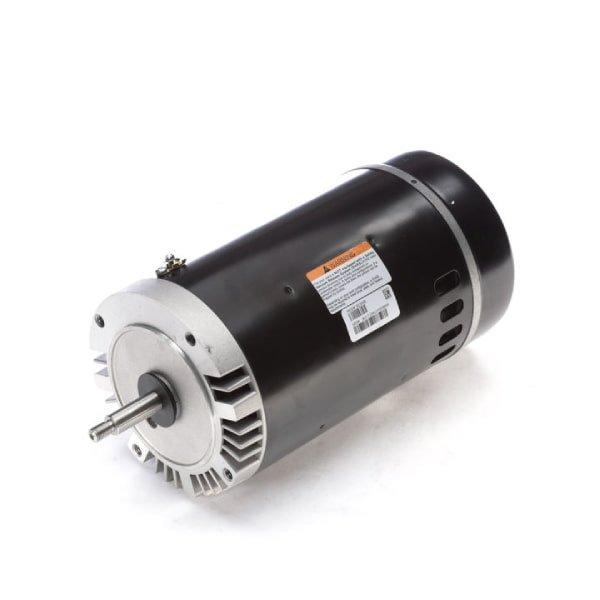

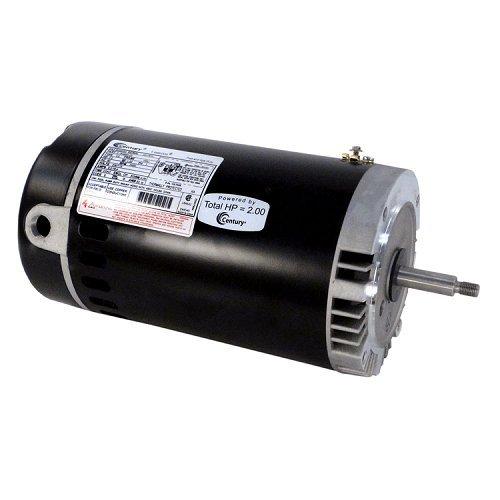

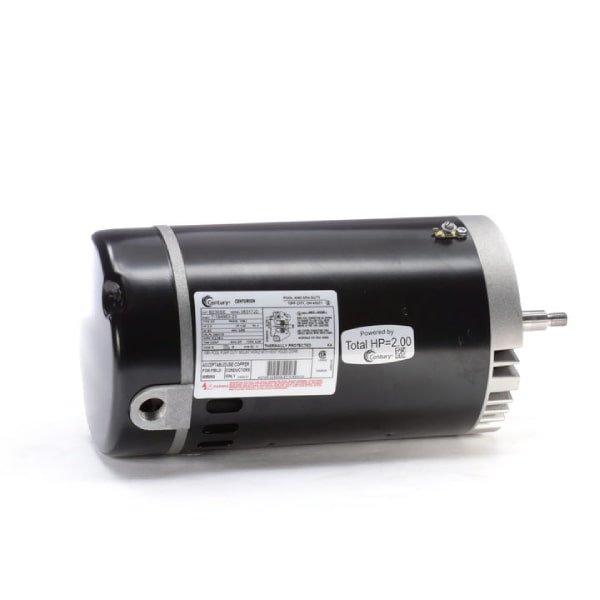

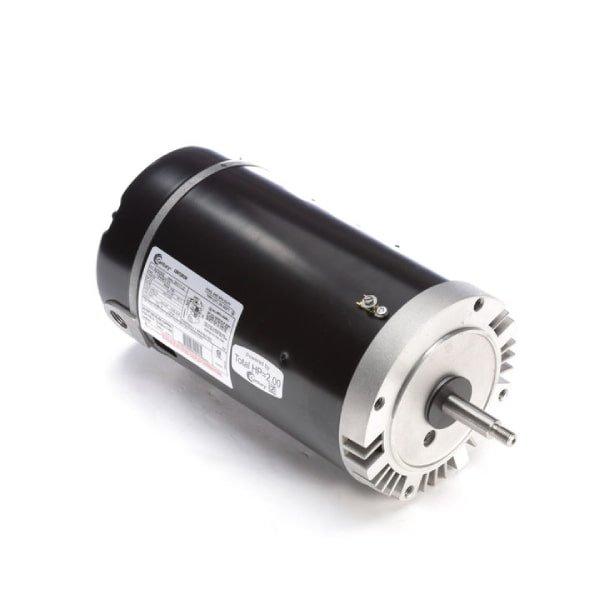

Century A.O. Smith - B230SE C-Face 2 HP Up-Rated 56J Pump Motor, 9.2/18.4A 115/230V
$399.99
Century A.O. Smith B230SE C-Face 2 HP Up-Rated 56J Pump Motor, 9.2/18.4A 115/230V
More Details
Membership Available
Century A.O. Smith B230SE C-Face 2 HP Up-Rated 56J Pump Motor, 9.2/18.4A 115/230V
- Threaded shaft
- Ball Bearings
- 50 C Ambient
- 60 Hertz
- Class B Insulation
- Rotation: CCW Pump End
- 304 Bearing Shaft End
Century A.O. Smith B230SE C-Face 2 HP Up-Rated 56J Pump Motor, 9.2/18.4A 115/230V. The Century C-Face Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency. It meets industry standards with its 1081 design while providing durability with its aluminum NEMA brackets. Equipped with an auto overload protector, a stainless steel shaft, and ball bearings, the Century C-Face Pool and Spa Pump Motor provides long lasting operation. Available in Full and Up-Rated models ranging from 1/2HP to 3HP, it delivers high performance.
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation
| Installation Type: | Residential |
| Pool Type: | Spa/Hot Tub |
| Shaft Type: | Threaded |
| Phase Type: | Single Phase |
| Flange Type: | J Flange |
| Service Factor: | 1.00 - 1.25 |
| Speed Settings: | Single Speed |
| Horsepower: | 2 HP |
| Voltage: | 120V / 240V |
| Rating Type: | Up-Rated |
| Product Type: | Pool Motor |
| Motor Frame: | 56 Frame |
| Energy Efficiency: | Standard |
| Compatible Pumps: | SP2615X20 |
| Compatible Pumps: | SHPM2.0 |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
